1. 适用范围Application Range
适合于室外照明，如一些公共场所，隧道等等用，主要包括隧道灯的电气特性、光学特性、结构特性、产品认证、环保及可靠性要求。
Suitable for outdoor lighting, such as some public places, tunnels and so on, including the electrical characteristics of tunnel lights, optical characteristics, structural characteristics, product certification, environmental protection and reliability requirements.
2. 参考标准Reference Standard
□ GB/T 22907灯具的光度测试和分布光度学
□ GB/T 5702-2003 光源显色性评价方法
■ GB 7000.1灯具第1部分: 一般要求与试验
■ GB 7000.201灯具第2-1部分:特殊要求固定式通用灯具
□ GB17743电气照明和类似设备的无线电骚扰特性的限值和测量方法
□ GB17625.1电磁兼容限值谐波电流发射限值(设备每相输入电流≤16A)
□ GB/T 18595一般照明用设备电磁兼容抗扰度要求
□ GB/T 20145 灯和灯系统的光生物安全性
□ CIE 121 Photometry and goniophotometry of luminaires
□ CIE No.13.3 Methods of measuring the color of light sources
■ IEC 60598-1Luminaires - Part 1: General requirements and tests
■ IEC 60598-2-1Luminaires - Part 2-1: Particular requirements - Fixed general purpose luminaires
□ UL 1598Luminaires
□ UL 8750Light Emitting Diode (LED) Equipment for Use in Lighting Products
□ CISPR 15Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
■ IEC/EN 61000-3-2Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
■ IEC/EN 61000-3-3Electromagnetic compatibility (EMC) – Part 3-3: Limits – Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
■IEC/EN 61547Equipment for general lighting purposes - EMC immunity requirements
□ IEC/EN 62493Assessment of lighting equipment related to human exposure to electromagnetic fields
□ IEC/EN 62471 Photobiological safety of lamps and lamp systems
3. 产品特性Product Features
3.1. 电气性能Electrical Performance
|
序号
No.
|
电气参数
Electrical Parameters
|
要求 Requilrements
|
|
1
|
电源 Driver
|
隔离isolated内置 built-in
|
|
2
|
输入电压Input Voltage（V）
|
85V-305V
|
|
3
|
输入频率Input Frequency（Hz）
|
50～60Hz
|
|
4
|
输入电流Input Current（A）
|
0.227A(220VAC)
|
|
5
|
空载功率No-load Power（W）
|
＜1.0W
|
|
6
|
输入功率Input Power（W）
|
100±5%
|
|
7
|
功率因数PF
|
>0.9
|
|
8
|
调光方式Dimming Mode
|
/
|
|
9
|
调光范围Dimming Range
|
/
|
|
10
|
浪涌保护 Surge
|
有(YES)
|
3.2. 光学性能Optical Performance
|
序号
No.
|
光学参数
Optical Parameters
|
数值 Parameter Values
|
|
1
|
灯珠LED
|
飞利浦3030
|
|
2
|
配光曲线/光斑Light Distribution Curve/Spot
|
参见“配光曲线图”
Refer to “Light Distribution Curve”
|
|
3
|
发光角度Beam Angle（°）
|
120°
|
|
4
|
相关色温CCT（K）
|
3000-6500K
|
|
5
|
显色指数 CRI
|
≥80
|
|
6
|
色容差 SDCM
|
≤5
|
|
7
|
光通量Luminous Flux（lm）
|
9000-11000LM
|
|
8
|
灯具效率Luminaire Efficiency（lm/W)
|
≥100Lm/W
|
|
|
|
|

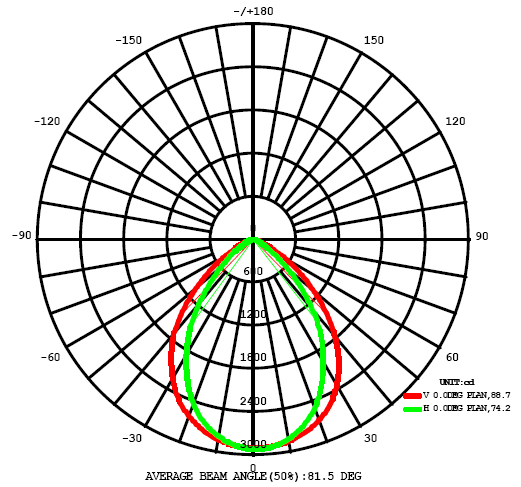

配光曲线Light Distribution Curve
|

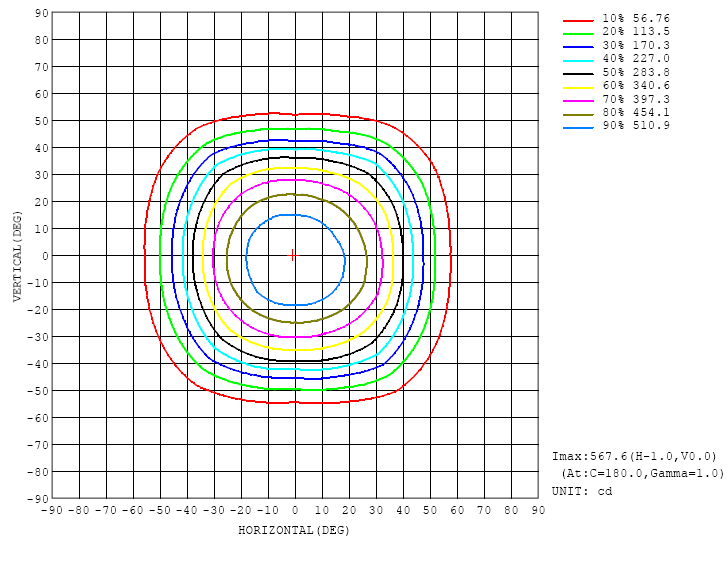

等光强曲线Isocandela Diagram
|
|
|
|
|

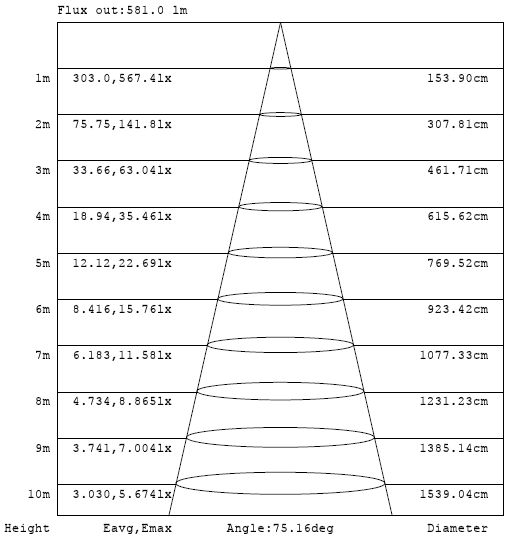

空间等照度图C0 Plane Isolux Diagram
|

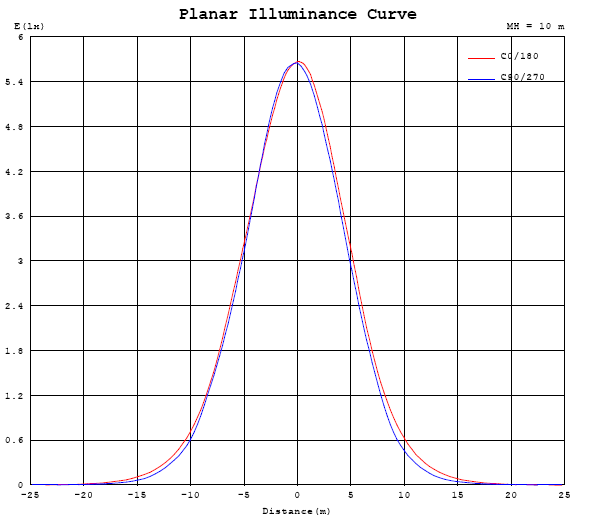

有效平面照度图 AAI.Figure
|
3.3. 环境适用性Environmental Applicability
|
存储温度/湿度Storage Temperature/Humidity
|
-40℃～ 70℃ / 10% ～ 98%RH
|
|
工作温度/湿度Working Temperature/Humidity
|
□室内indoor -20℃～ 40℃ 30% ～ 70%RH
■户外outdoor -40℃～ 50℃ 30% ～ 70%RH
|
|
抗腐蚀防护
Corrosion Protection
|
金属部件应有防锈蚀措施
Metal parts shall have the corrosion prevention measures.
■ 喷漆防护Spray painting protection
□ 镀层防护Coating protection
■ 不锈钢防护Stainless steel protection
|
|
UV防护
UV Protection
|
□ I级Class I（紫外老化24h）
Ultraviolet aging for 24 hours
■ II级Class II（紫外老化72h）
Ultraviolet aging for 72hours）；
□ III级Class III（紫外老化168h）
Ultraviolet aging for 168 hours）；
|
4. 产品结构Product Structur

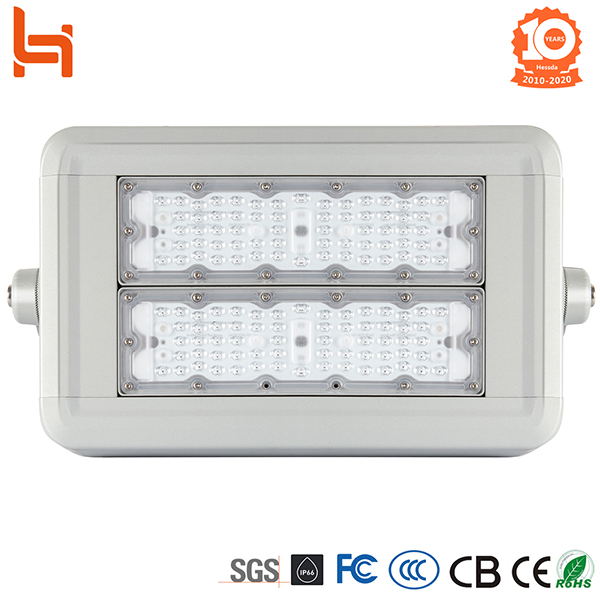

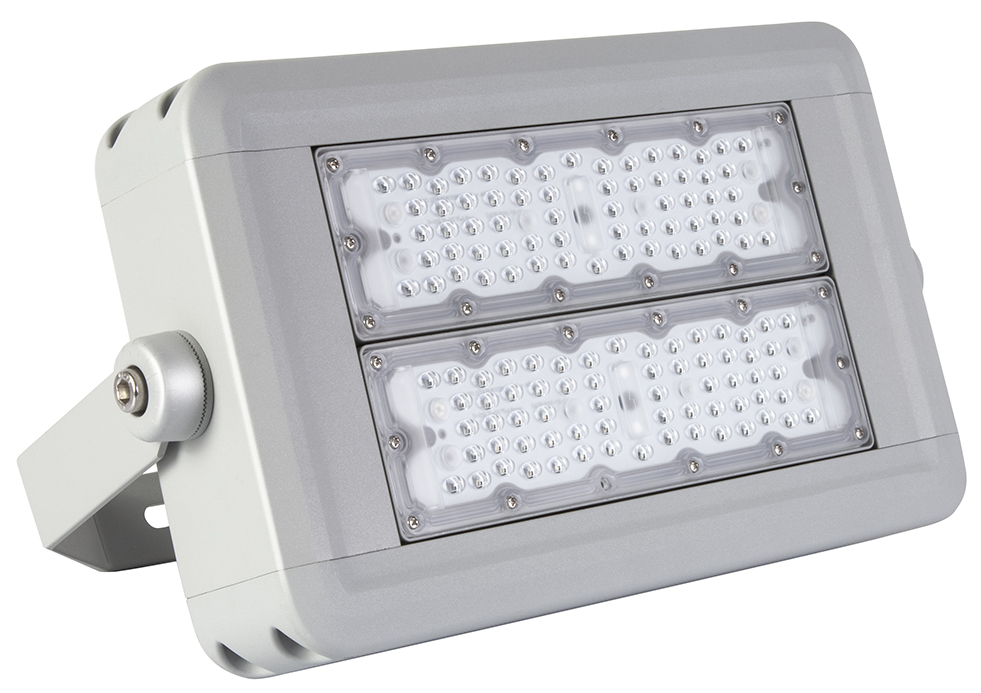

4.1. 产品外观图Product Appearance

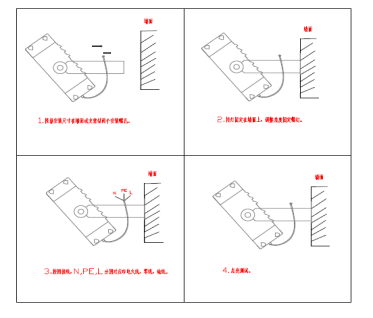

4.2. 产品安装示意图Product Installation Diagram

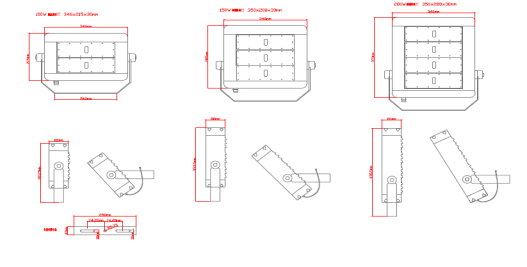

4.3. 产品装配及尺寸Assembly Drawing and Dimension
5. 认证符合性Product Approbation
5.1. 常规安全测试Regular Safety Test
|
测试项目Test Item
|
结构分类Structure Classification
|
测试条件
Testing Conditions
|
测试参数Testing parameters
|
测试时间Testing Time
|
限值
Limiting Value
|
|
耐压测试Hipot Test
|
□I类class I
|
输入-外壳input-shell
|
1000+2U(AC)
|
1min
|
10mA Max.
|
|
■II类class II
|
输入-外壳input-shell
|
2000+4U(AC)
|
1min
|
10mA Max.
|
|
□III类class III
|
输入-外壳input-shell
|
500Vac
|
1min
|
10mA Max.
|
|
绝缘电阻Insulation Resistance
|
□I类class I
|
输入-外壳input-shell
|
500Vdc
|
1min
|
2MΩ Min.
|
|
■II类class II
|
输入-外壳input-shell
|
500Vdc
|
1min
|
4MΩ Min.
|
|
□III类class III
|
输入-外壳input-shell
|
100Vdc
|
1min
|
1MΩ Min.
|
|
泄露电流Leakage Current
|
□I类class I
|
输入-外壳input-shell
|
220V/50Hz
|
10S
|
0.5mA Max.
|
|
■II类class II
|
输入-外壳input-shell
|
220V/50Hz
|
10S
|
1.0mA Max.
|
|
接地电阻Ground Resistance
|
□I类class I
|
接地线-外壳金属
Grounding wire-metal shell
|
10A
|
1min
|
500mΩ Max.
|
5.2. 产品认证Product Certification
|
符合认证Meet
Certification
|
认证类别Certification Categories
|
符合标准规范Conform to the Standard Specification
|
|
|
CCC
|
GB 7000.1; GB 7000.201; GB17743; GB17625.1
|
|
√
|
CQC
|
GB 7000.1; GB 7000.201; GB17743; GB17625.1; GB 18595
|
|
√
|
CE
|
EN 60598-1; EN60598-2-1; EN62493; EN55015; EN 61000-3-2; EN61000-3-3; EN61547; EN62471
|
|
|
UL
|
UL 1598; UL1993;UL8750; UL1598C
|
|
|
RCM
|
SAA 60598.1; SAA 60598.2.1; CISPR 15
|
|
|
RoHS
|
2011/65/EU directive (RoHS 2.0)
|
|
|
ERP
|
Reg.1194/2012/EC & EU (NO) 874/2012/EC
|
|
|
DLC
|
DLC Technical Requirements Table, V3.0
|
|
|
Energy Star
|
ENERGY STAR® Program Requirements Product Specification for Luminaires (Light Fixtures)
Eligibility Criteria Version 2.0
|
6. 可靠性Reliability
6.1. 产品100%在30+/-5℃条件下点亮老化至少4小时。
100% guarantee to light up the products at least for 4 hours’ aging test under the temperature condition of 30+/-5℃.
6.2. 产品输入电压在ON 30 sec / OFF 30 sec条件下连续工作5000个周期。
Continuous work for 5000 cycles under the condition of ON 30 sec/OFF 30 sec
Input voltage.
6.3. 在环境温度25℃条件下，平均无故障间隔MTBF时间大于200，000小时。
MIBF>200000 hours under the environment temperature condition of 25℃.
6.4. 产品质保3年。
3 Years Warranty

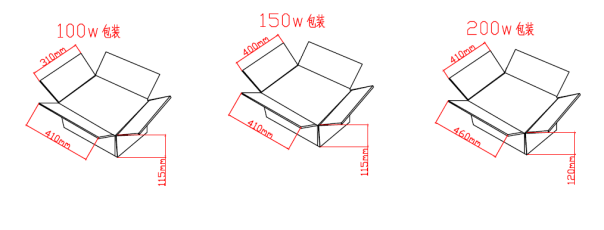

7. 包装Packag
包装材料清单Packaging Material List
|
名称 Product Name
|
规格 Size
|
数量Qty
|
单位Unit
|
|
包装材料Packing Material
|
外包装纸箱Carton Label
|
100W 410*310*115mm，K=K瓦楞纸板
|
1
|
PCS
|
|
外包装纸箱Carton Label
|
150W 410*400*115mm，K=K瓦楞纸板
|
1
|
PCS
|
|
外包装纸箱Carton Label
|
200W 460*410*115mm，K=K瓦楞纸板
|
|
|
|
PE袋PE Bag
|
/
|
1
|
PCS
|
|
标识
Mark
|
产品标签Product Label
|
60*15mm
|
1
|
PCS
|
|
警告标签Warning Label
|
/
|
/
|
PCS
|
|
内盒标贴Inner Box Label
|
|
/
|
PCS
|
|
说明书Specification
|
A4
|
1
|
PCS
|
|
运输
Transport
|
护角Edge Board
|
50*50*2000mm
|
4/384
|
PCS
|
|
PE缠绕膜PE Wrapping Film
|
缠绕膜,宽450mm,重3000g
|
0.03/2000
|
卷
|
|
盖板Cover
|
|
1/384
|
PCS
|
|
栈板Pallet
|
|
1/384
|
PCS
|
|
包装数量 Qty/ctn
|
|
24
|
PCS
|
|
毛重 Gross Weight/ctn
|
|
|
|
|
备注：
Remark：
|
|
|
8. 主要材料清单Main Material List
|
名称 Product Name
|
规格 Size
|
数量Qty
|
单位Unit
|
|
100W底壳
|
346*215*80mm;铝型材
|
1
|
PCS
|
|
防水硅胶圈
|
一体凸镜配 B白色
|
1
|
PCS
|
|
一体凸镜
|
236*70*5.75mm
|
1
|
PCS
|
|
150W底壳
|
346*285*80mm;铝型材
|
1
|
PCS
|
|
防水硅胶圈
|
一体凸镜配 B白色
|
1
|
PCS
|
|
一体凸镜
|
236*70*5.75mm
|
1
|
PCS
|
|
200W底壳
|
346*370*80mm;铝型材
|
1
|
PCS
|
|
防水硅胶圈
|
一体凸镜配 B白色
|
1
|
PCS
|
|
一体凸镜
|
236*70*5.75mm
|
1
|
PCS
|
