洗墙灯

24WCW洗墙灯

24WCW洗墙灯

  • General Description描述

Led洗墙灯适用各种各样房屋建筑,室内室外部分或轮廊照明灯具,非常合适室内室外休闲娱乐会所,房屋建筑轮廊勾勒及广告牌的制做等。

Led Wash Wall lamp for all kinds of housing construction, indoor and outdoor parts or wheel corridor lighting, very suitable for indoor and outdoor leisure clubs, housing construction wheel corridor outline and the production of advertising signs.

 Applications产品应用

●  Outdoor landscape lighting, lighting works.
户外景观照明,亮化工程。
●  Municipal works, interior stage lighting.
市政工程,室内舞台灯光。
●  Hall, conference room, shopping malls.
大厅、会议室、商场.+


■  Technical Parameters技术参数
Item            HXD-XQJ -24WCW
Power 24W
Input voltage AC90-265V
Output DC24V
Driver 隔离isolated外置External placement
Frequency 50-60HZ
PF >0.9
LED Quantity 鸿利3030 6V/1W  24pcs
Light efficiency 93≧LM/W
Lumen 2234LM
Color Temperature 2800k-6500k
CRI                  Ra>80
Beam angle 10°,60°
Lifespan ≧25000Hrs
IP IP66

                       配光曲线

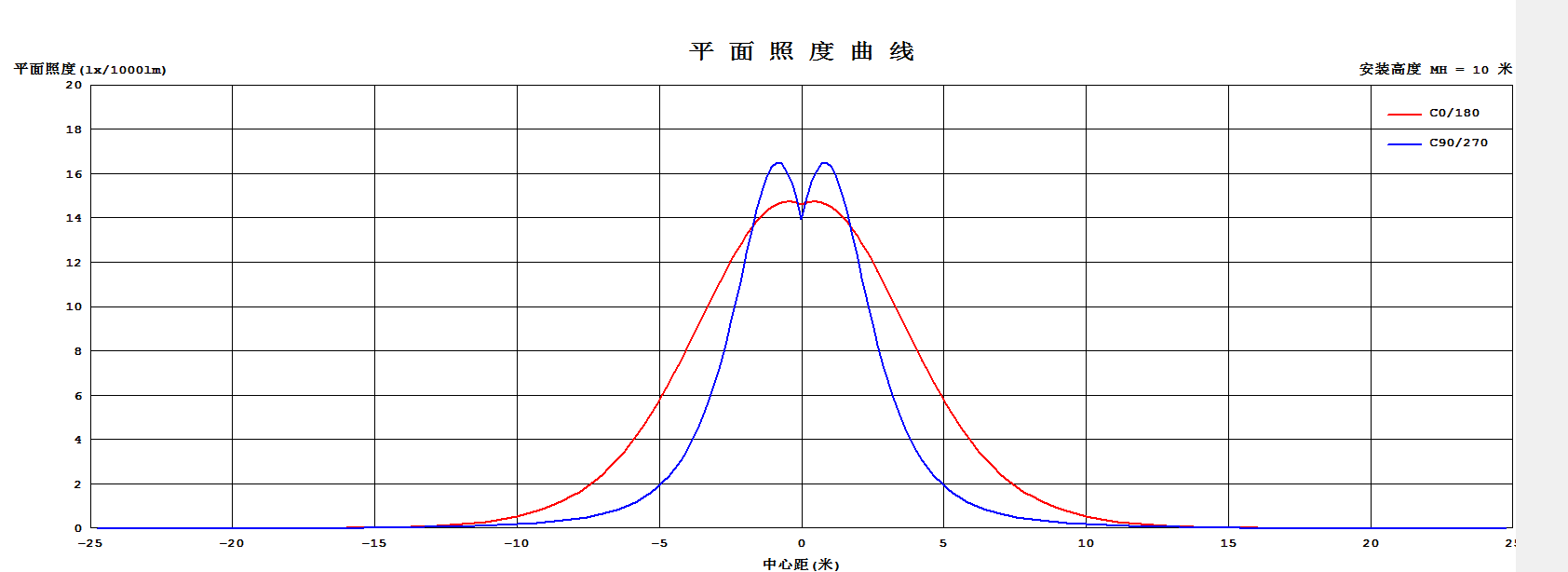

照度曲线

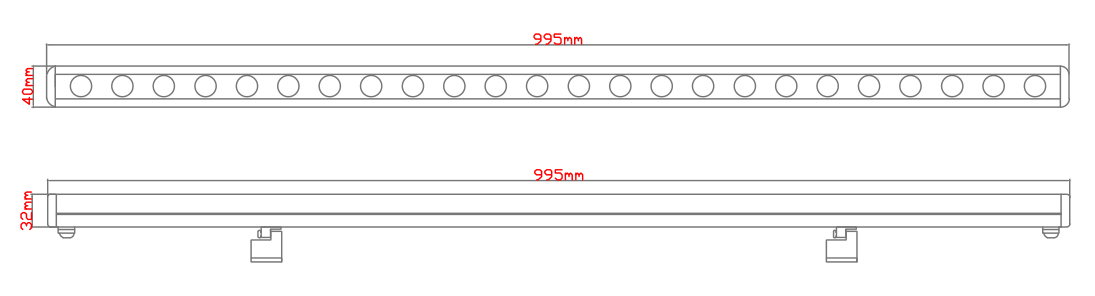

  • Outline Dimension外形尺寸
Unit:mm

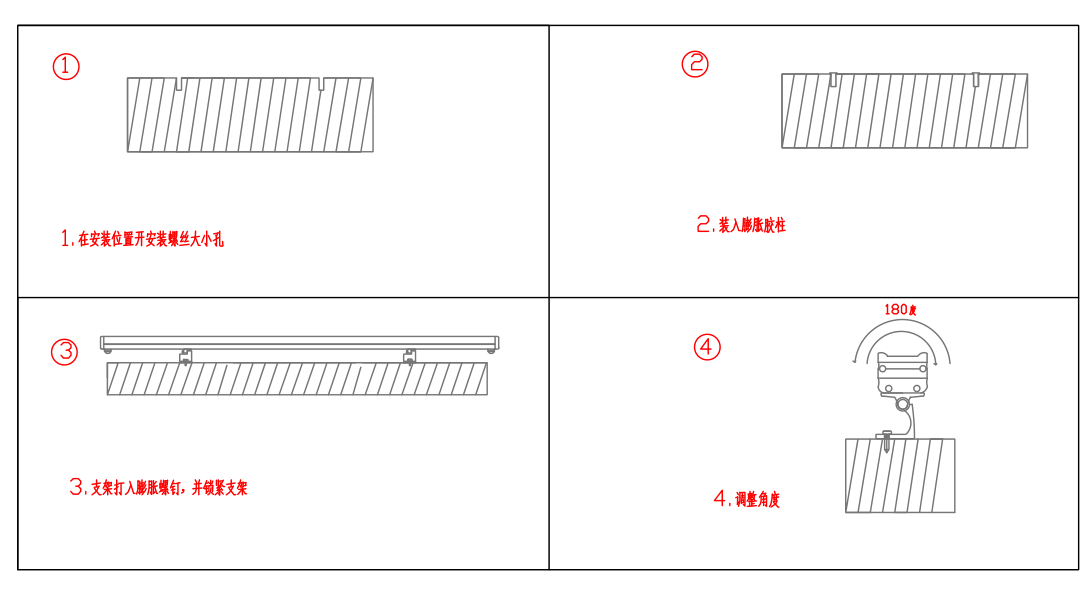

Product Installation Diagram 安装示意图

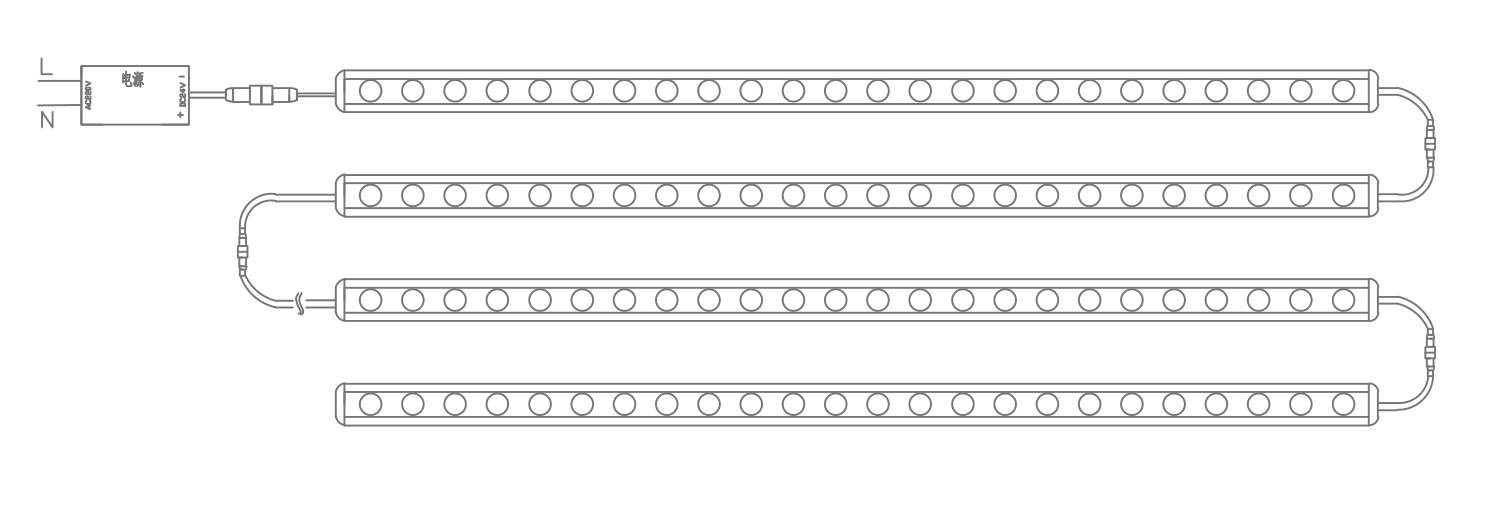

Product Circuit Diagram   产品极连图

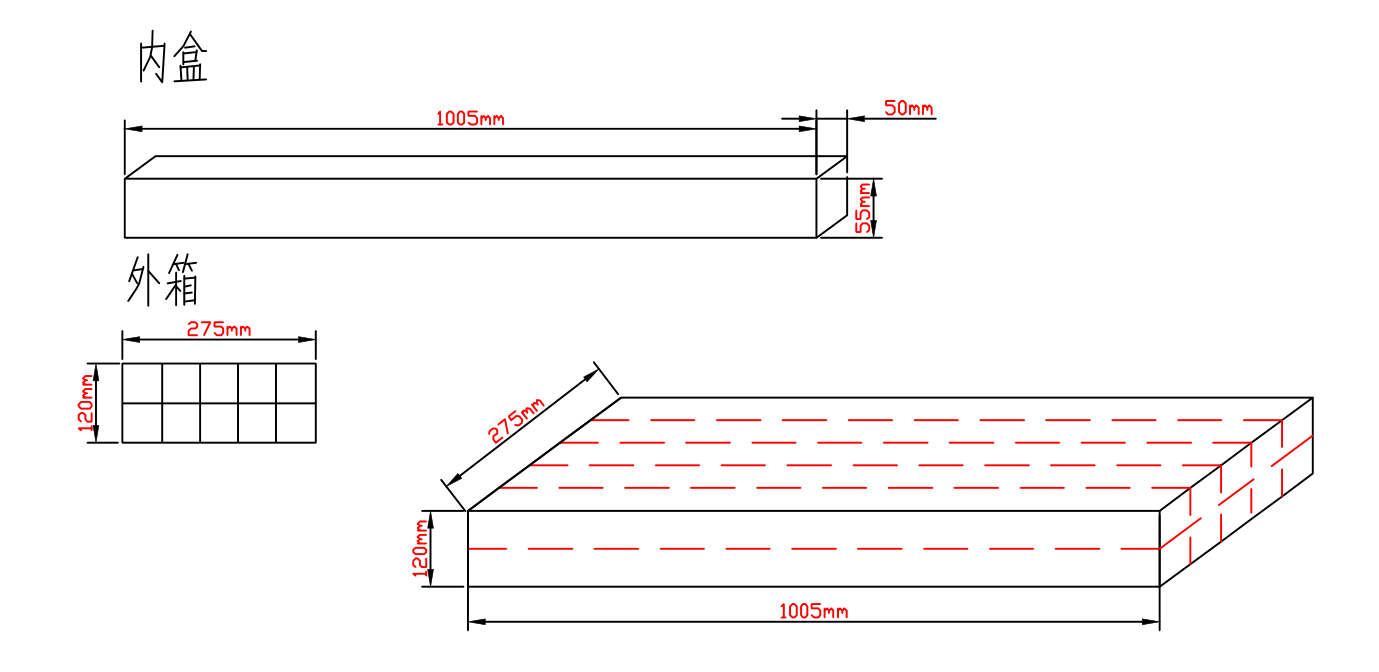

Packing  包装
