地埋灯

8W地埋灯

8W地埋灯

■ General Description描述

地埋灯广泛应用于广场、酒楼、私人别墅、花园、会议室、展览厅、小区环境美化、舞台酒吧、商场、停车雕塑 ……

The underground lamp is widely used in square, restaurant, private villa, Garden, meeting room, exhibition hall, Residential Area Beautification, stage Bar, shopping mall, parking sculpture..


  Applications产品应用

●  Square, restaurant, private villa, Garden, meeting room
广场、酒楼、私人别墅、花园、会议室

●  Gas stations, supermarket, exhibition hall, sports venues.
加油站、大型超市、展览馆、体育场馆.

●  Exhibition Hall, Residential Area Environment Beautification.
展览厅、小区环境美化。+


■  Technical Parameters技术参数

●  Lighting parameters灯具参数


Item HXD-DM-8WCW
Power 8W
Input voltage AC90-265V
Driver 隔离  外
Frequency 50-60HZ
PF >0.9
LED Quantity 飞利浦3030 6V/1W  8pcs
Light efficiency ≧95LM/W
Lumen 95LM
Color Temperature 2800k-6500k
CRI Ra>80
Beam angle 30°
Lifespan ≧25000Hrs
IP IP66

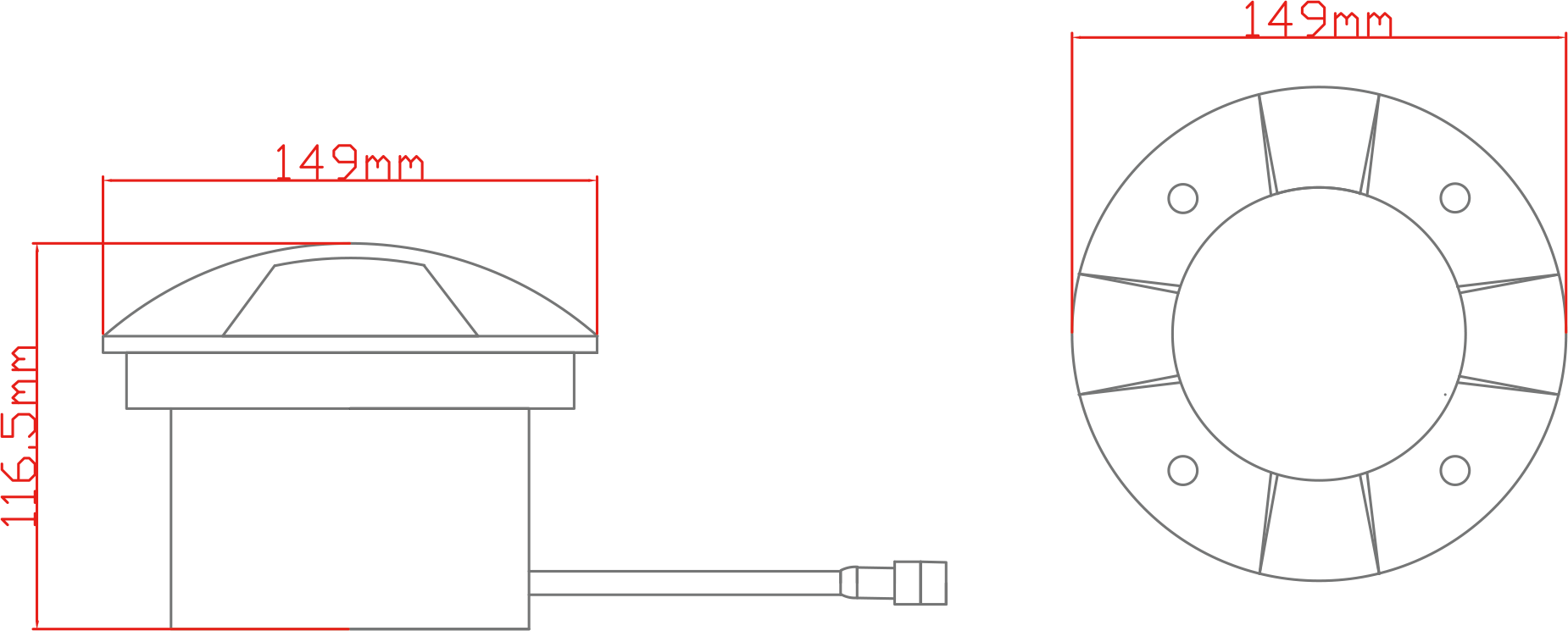

■ Outline Dimension外形尺寸

Unit:mm

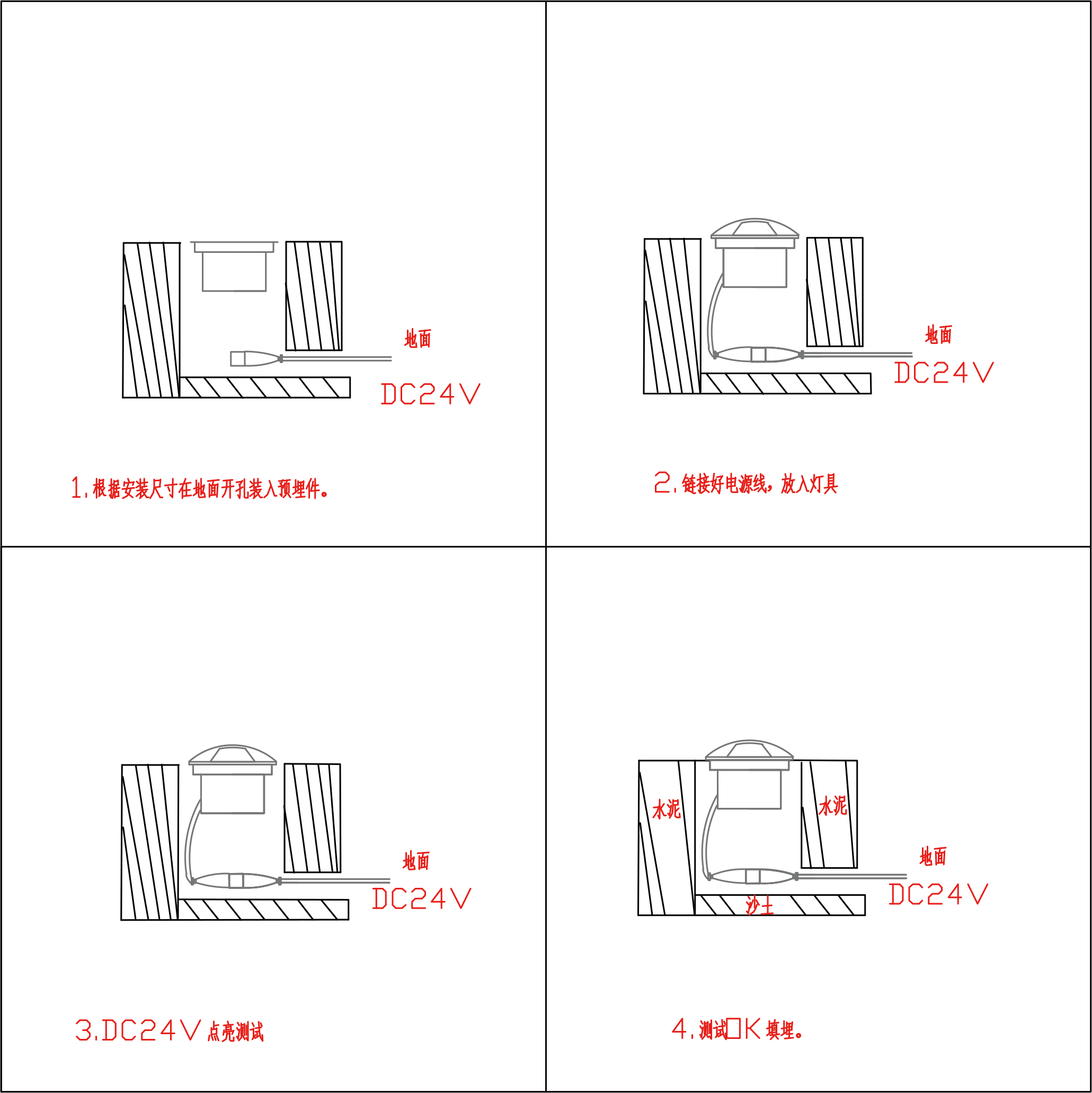

■ Product Installation Diagram 安装示意图

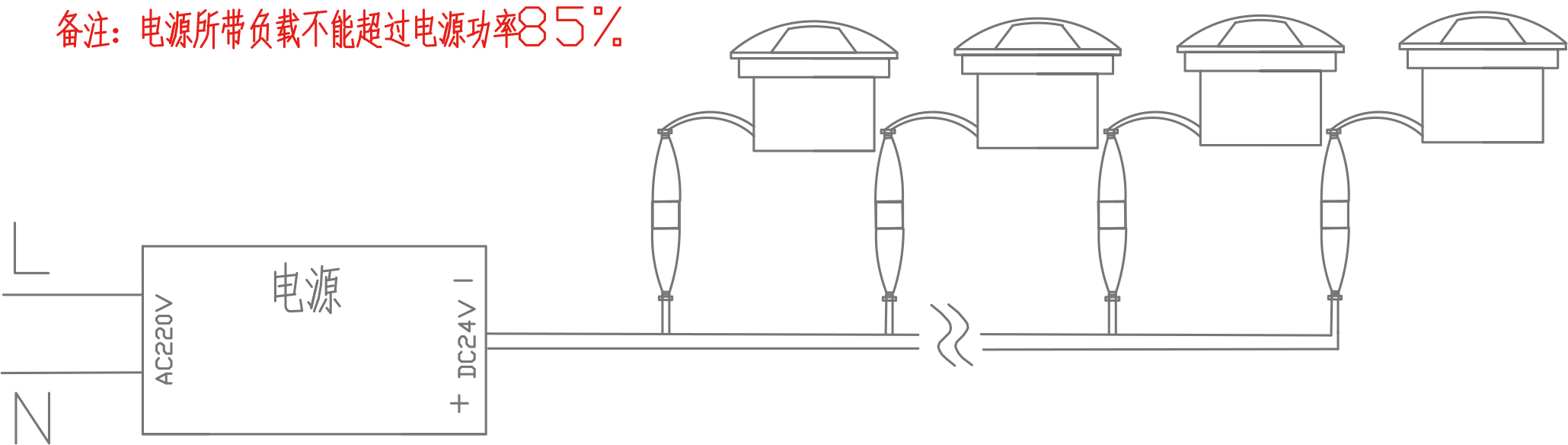

■ Product Circuit Diagram   产品连接图



■ Packing  包装
