泛光灯

北极光150w  蓝边

北极光150w 蓝边

  • General Description描述

适合于室外照明,如一些公共场所,矿厂单位等等用,主要包括泛光灯的电气特性、光学特性、结构特性、产品认证、环保及可靠性要求。

       Suitable for outdoor lighting, as some public places, refinery units and so on, mainly including electrical properties, optical properties, structural characteristics, product certification, environmental protection and reliability requirements.

  Applications产品应用

●  Production workshop, factory buildings, warehouses, highway toll station.
生产车间、厂房、仓库、公路收费站.
●  Gas stations, supermarket, exhibition hall, sports venues.
加油站、大型超市、展览馆、体育场馆.
●  Hall, conference room, shopping malls.
大厅、会议室、商场.

■  Technical Parameters技术参数


Item              HXD-FDL-BJG-150W
Power 300W
Input voltage AC90-265V
Driver 隔离isolated内置 built-in
Frequency 50-60HZ
PF >0.9
LED Quantity 飞利浦3030 6V/1W  384pcs
Light efficiency ≧115LM/W
Lumen 34500LM -35000LM
Color Temperature 2800k-6500k
CRI                  Ra>80
Beam angle 120°
Lifespan ≧25000Hrs
IP IP66

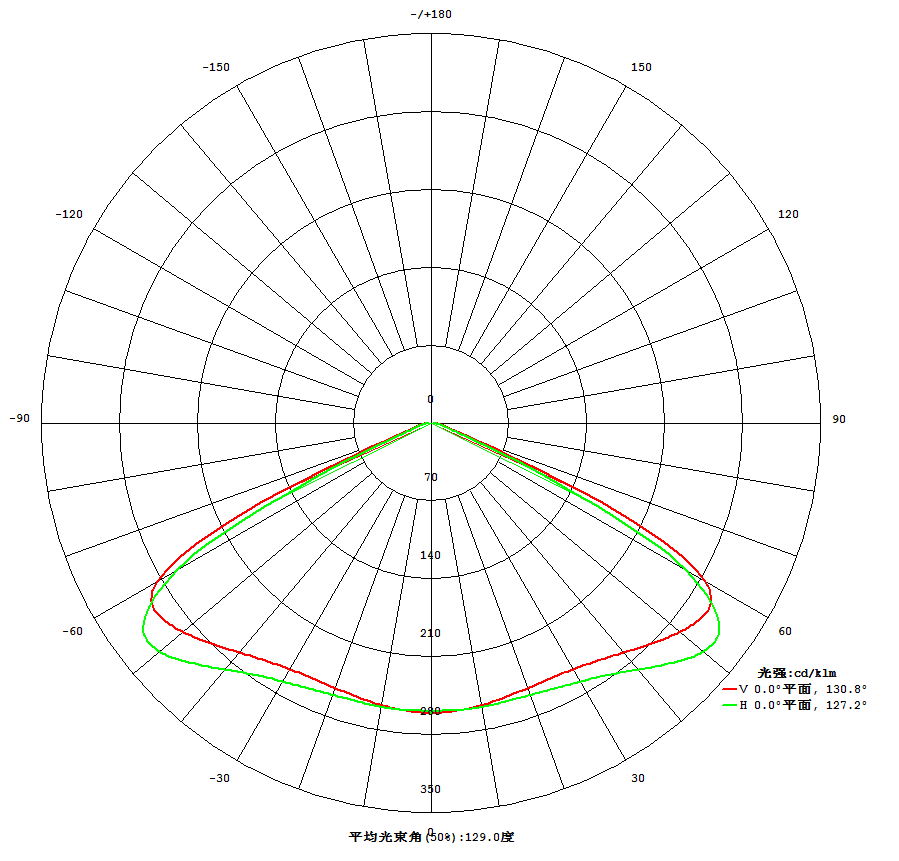

配光曲线

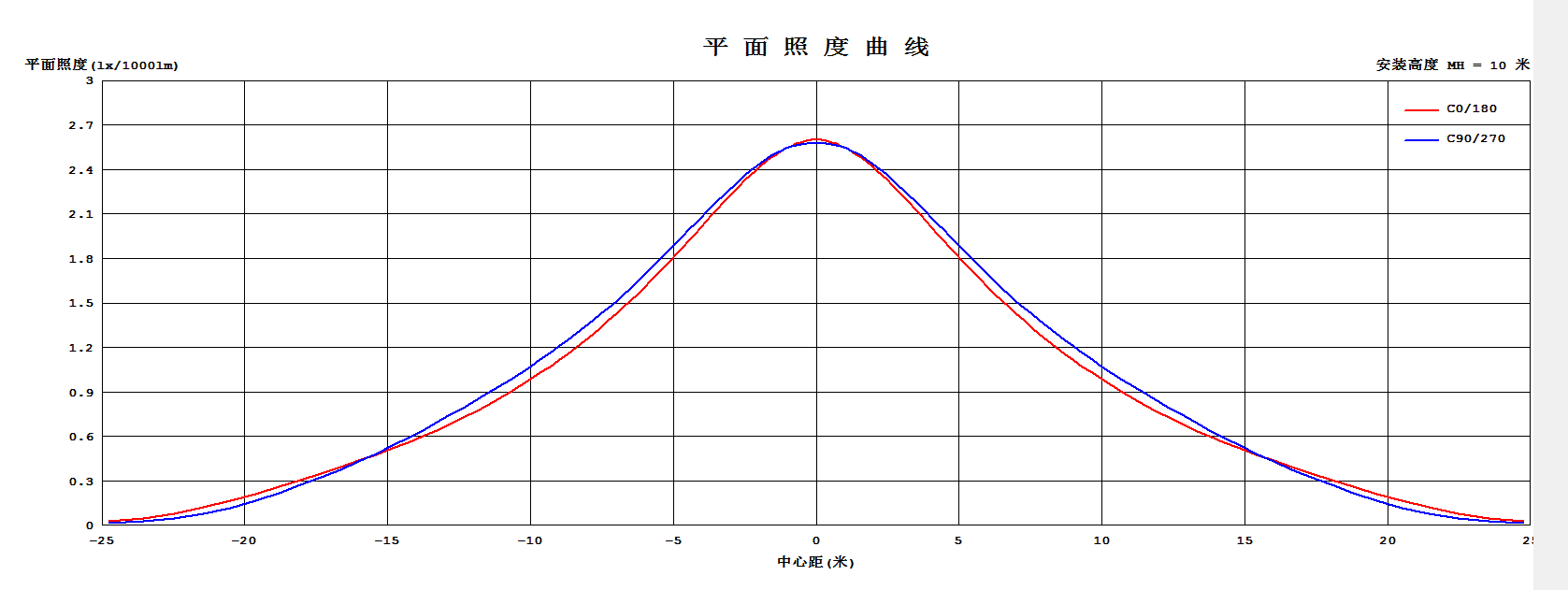

平均照度曲线

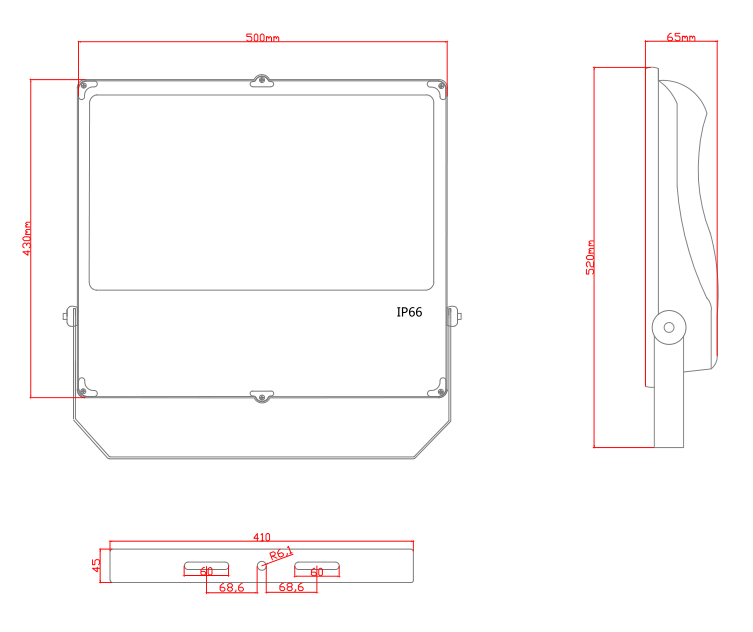

  • Outline Dimension外形尺寸

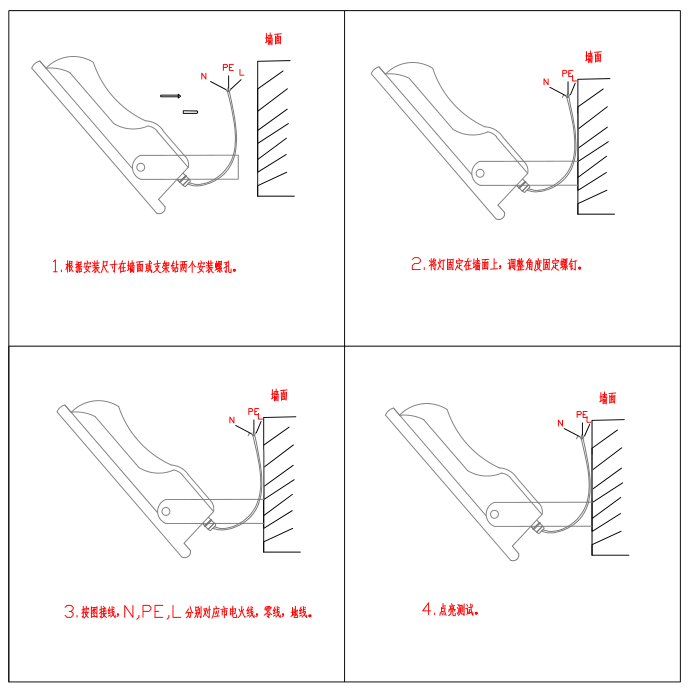

  • Product Installation Diagram 安装示意图

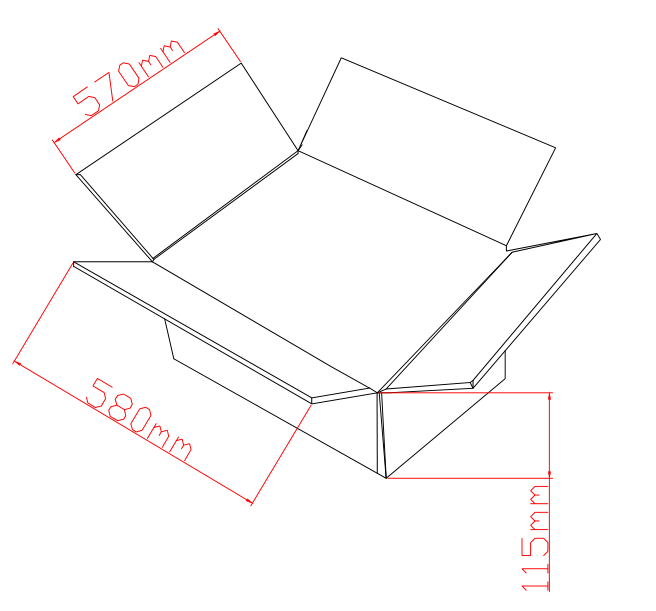

Packing  包装
