线条灯

自控七彩铝线灯

自控七彩铝线灯

  • General Description描述

led线条灯适用各种各样房屋建筑,室内室外部分或轮廊照明灯具,非常合适室内室外休闲娱乐会所,房屋建筑轮廊勾勒及广告牌的制做等。

Led Line lights are suitable for all kinds of buildings, indoor and outdoor parts or wheel corridor lighting, very suitable for indoor and outdoor leisure clubs, wheel corridor outline of housing construction and the production of advertising signs, etc.

 Applications产品应用

●  Outdoor landscape lighting, lighting works.
户外景观照明,亮化工程。
●  Municipal works, interior stage lighting.
市政工程,室内舞台灯光。
●  Hall, conference room, shopping malls.
大厅、会议室、商场.+

■  Technical Parameters技术参数

Item              HXD-LLF-45WRGB
Power 45W
Input voltage AC90-265V
Output DC24V
Driver 隔离isolated外置External placement
Frequency 50-60HZ
PF >0.9
LED Quantity 3030RGB  3V/1W RGB  48pcs
Light efficiency ≧84LM/W
Wavelength R:620-630NM
Wavelength G:520-530NM
Wavelength               B:460-470NM
Beam angle 120°
Lifespan ≧25000Hrs
Dimming Range 全彩FULL COLOR
IP IP65

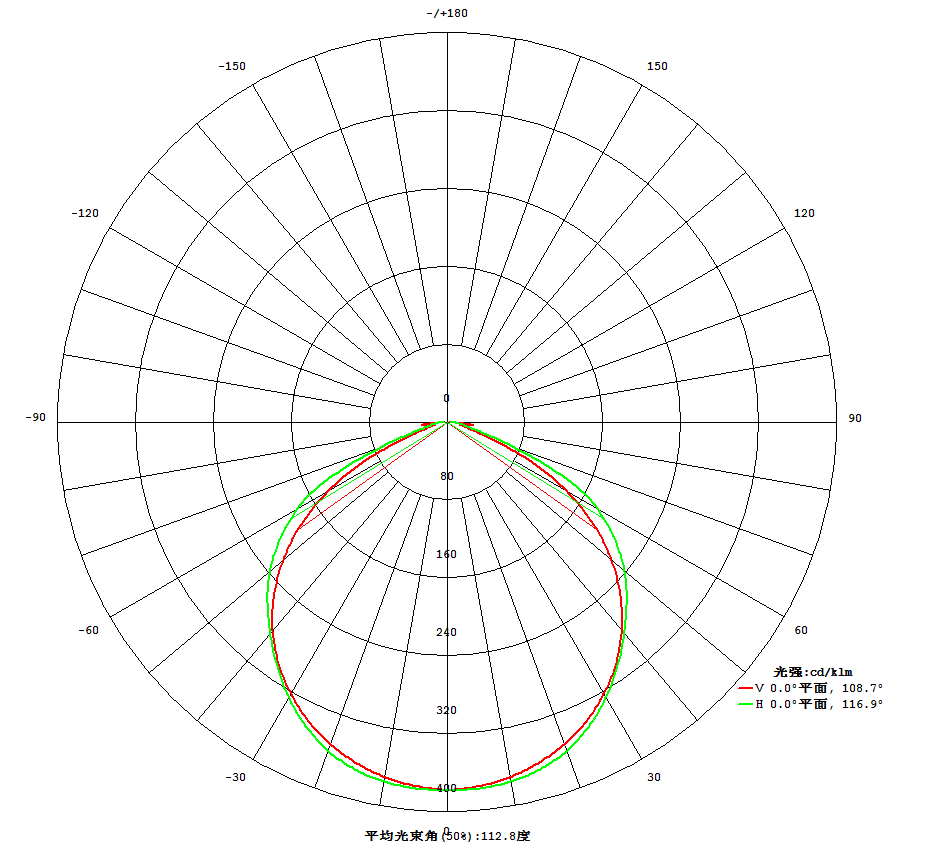

配光曲线

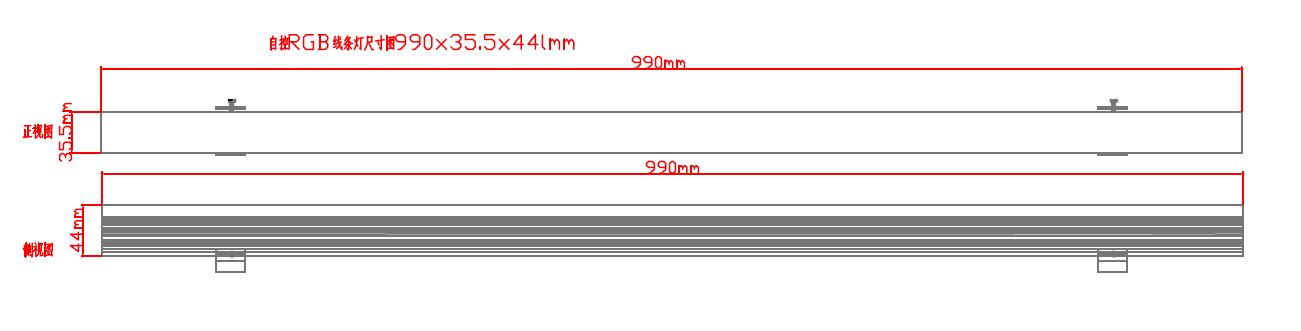

  • Outline Dimension外形尺寸

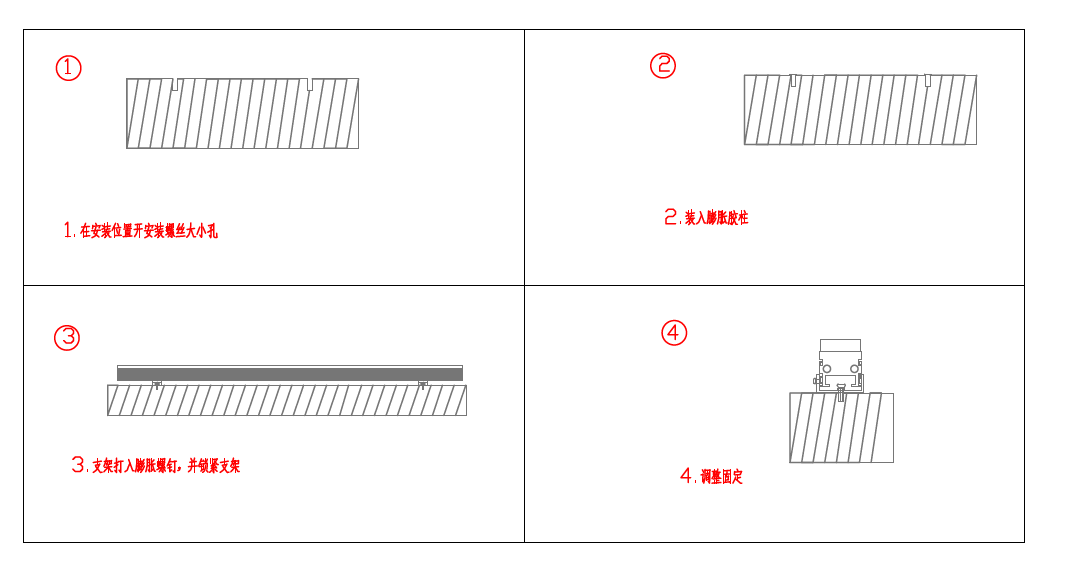

  • Product Installation Diagram 安装示意图

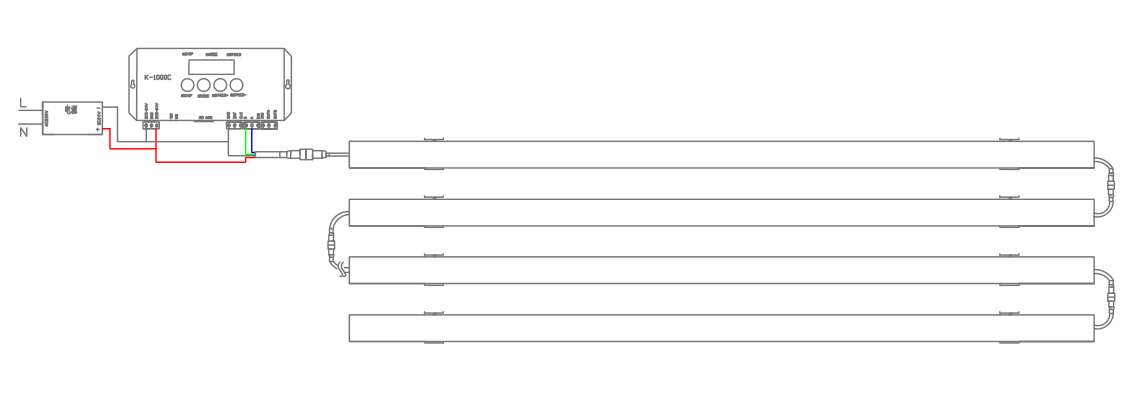

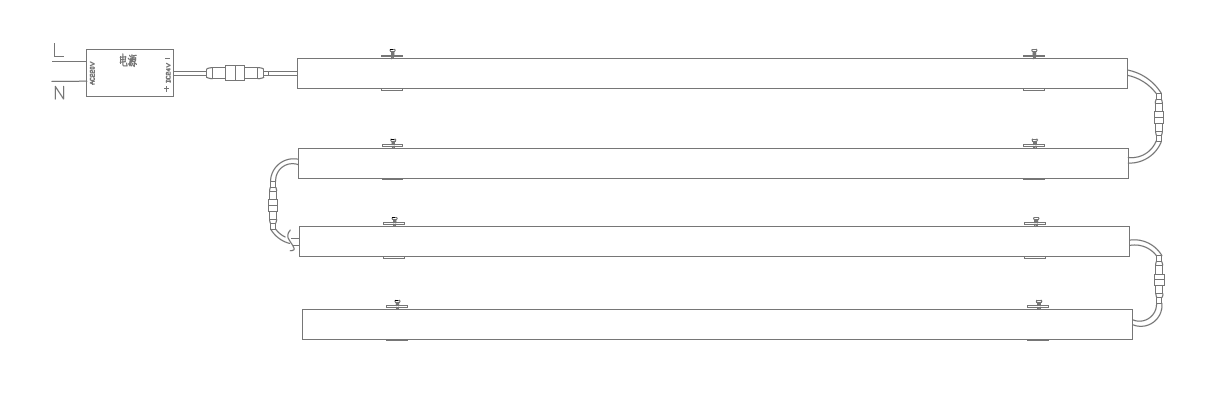

  • Product Circuit Diagram   产品极连图

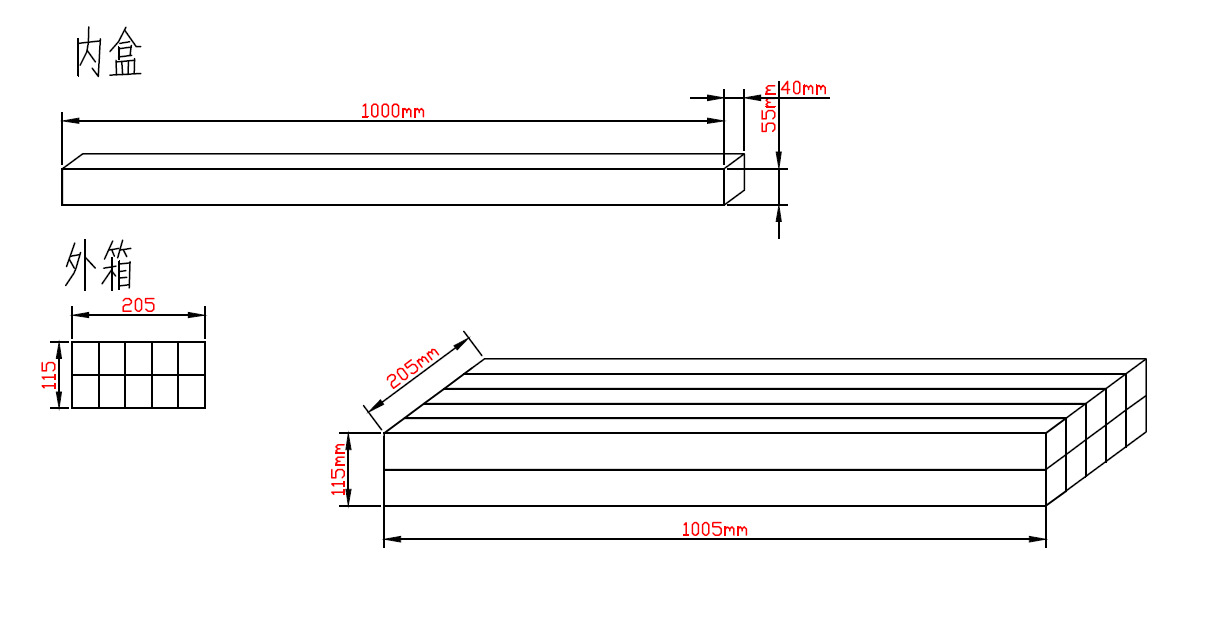

Packing  包装
