24W line lamp

24W line lamp

适合于室内照明,如场所亮化,装饰照明,家居照明,广告灯牌等等用,主要包括线条灯的电气特性、光学特性、结构特性、产品认证、环保及可靠性要求。

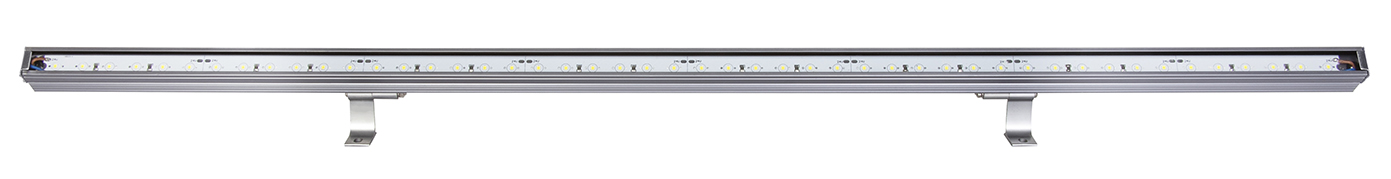

1. 产品外观图Product Appearance

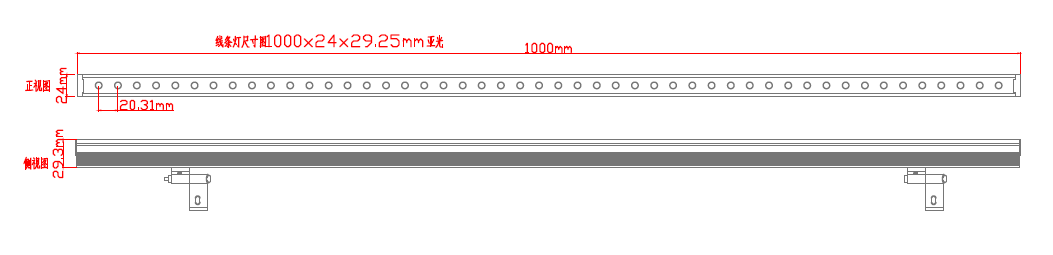

2. 产品装配及尺寸Assembly Drawing and Dimension

3. 电气性能Electrical Performance

序号

No.

电气参数

Electrical Parameters

要求           Requirements

1

电源 Driver

隔离isolated外置 built-in

2

输入电压Input VoltageV

220V-240V

3

输入频率Input FrequencyHz

5060Hz

4

输入电流Input CurrentA

0.11A(220VAC)

5

空载功率No-load PowerW

1.0W

6

输入功率Input PowerW

24±10%

7

功率因数PF

>0.9

8

调光方式Dimming Mode

恒压

9

调光范围Dimming Range

白光

10

浪涌保护 Surge

(YES)

4. 光学性能Optical Performance

序号

No.

光学参数

Optical Parameters

数值            Parameter Values

1

灯珠LED

鸿利2835 0.5W

2

配光曲线/光斑

Light Distribution Curve/Spot

参见配光曲线图

Refer to “Light Distribution Curve”

3

发光角度Beam Angle°

160°

4

相关色温CCTK

3000-6500K

5

显色指数 CRI

         80

6

色容差 SDCM

          ≤5

7

光通量Luminous Fluxlm

2200LM

8

灯具效率Luminaire Efficiencylm/W)

        90Lm/W

5. 环境适用性Environmental Applicability

存储温度/湿度Storage Temperature/Humidity

-40 70 / 10% 98%RH

工作温度/湿度Working Temperature/Humidity

室内indoor  -20 40   30% 70%RH

户外outdoor  -40 50℃  30% 70%RH

抗腐蚀防护

Corrosion Protection

金属部件应有防锈蚀措施

Metal parts shall have the corrosion prevention measures.

镀层防护Coating protection

□ 不锈钢防护Stainless steel protection

喷漆防护Spray painting protection

UV防护

UV Protection

■ IClass I(紫外老化24h

Ultraviolet aging for 24 hours

□IIClass II(紫外老化72h

Ultraviolet aging for 72hours);

□ IIIClass III(紫外老化168h

Ultraviolet aging for 168 hours);

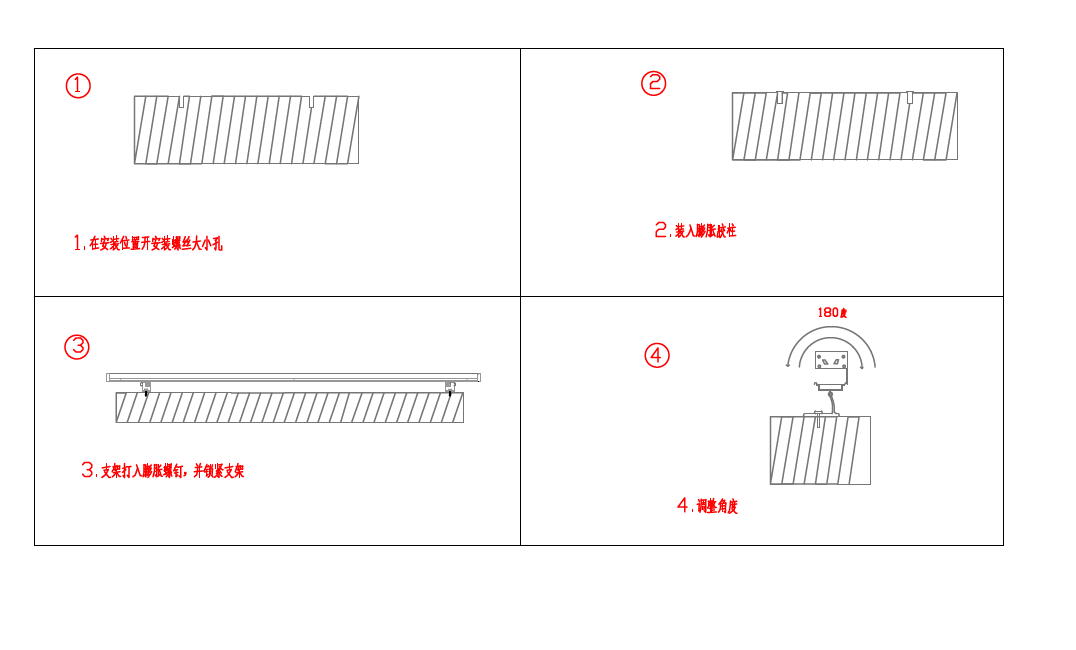

6. 产品安装示意图Product Installation Diagram

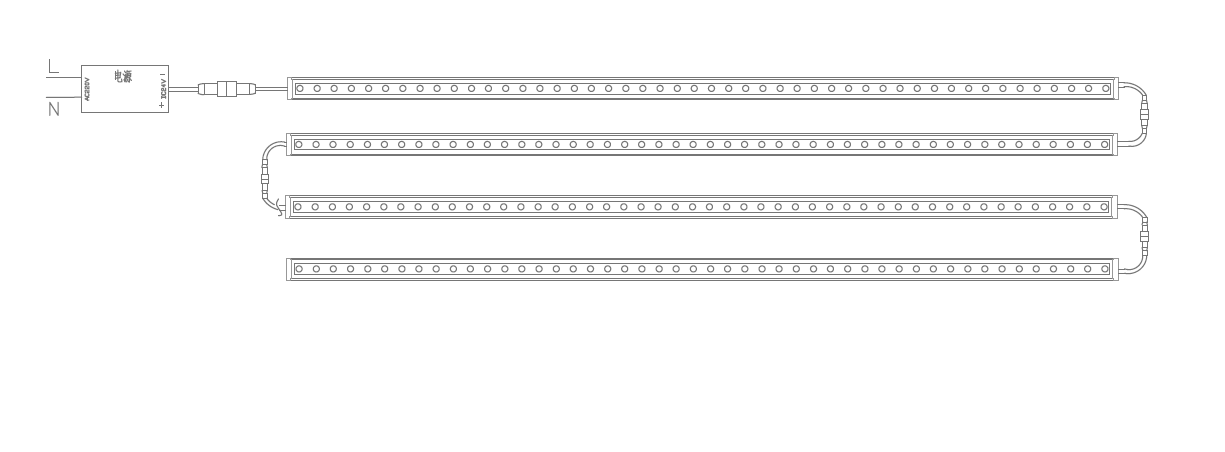

7. 产品连接图Product Circuit Diagram

8.可靠性Reliability

8.1. 产品100%30+/-5条件下点亮老化至少4小时

100% guarantee to light up the products at least for 4 hours’ aging test under the temperature condition of 30+/-5.

8.2. 产品输入电压在ON 30 sec / OFF 30 sec条件下连续工作5000个周期。

Continuous work for 5000 cycles under the condition of ON 30 sec/OFF 30 sec

Input voltage.

8.3. 在环境温度25条件下,平均无故障间隔MTBF时间大于200000小时。

MIBF>200000 hours under the environment temperature condition of 25.

8.4. 产品质保3年。

3 Years Warranty

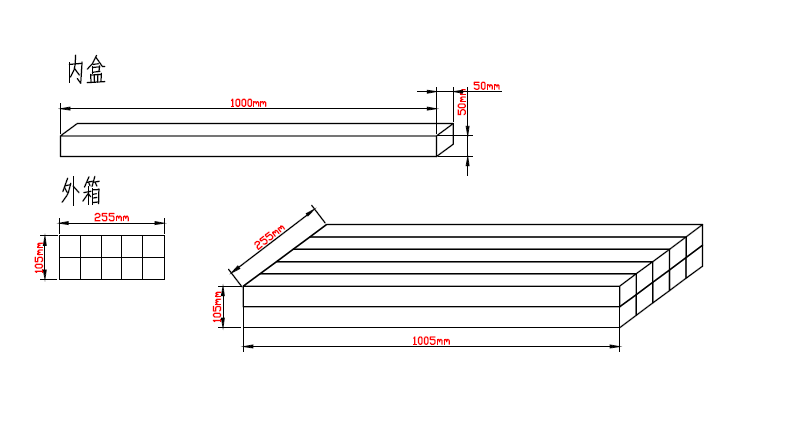

9. 包装Packag

10.主要材料清单Main Material List

名称 Product Name

规格 Size

数量Qty

单位Unit

底壳

1000*24*29.5mm;铝型材

1

PCS

防水硅胶圈

/

/

PCS

玻璃

1000*20*2mm

1

PCS
