投光灯

25-75W投光灯方形

■ General Description描述

适合于室外照明，如一些公共场所，矿厂单位等等用，主要包括泛光灯的电气特性、光学特性、结构特性、产品认证、环保及可靠性要求。

Suitable for outdoor lighting, as some public places, refinery units and so on, mainly including electrical properties, optical properties, structural characteristics, product certification, environmental protection and reliability requirements.

■ Applications产品应用
● Production workshop, factory buildings, warehouses, highway toll station.
生产车间、厂房、仓库、公路收费站.
● Gas stations, supermarket, exhibition hall, sports venues.
加油站、大型超市、展览馆、体育场馆.
● Hall, conference room, shopping malls.
大厅、会议室、商场.+

■ Technical Parameters技术参数

● Lighting parameters灯具参数

Item	HXD-FDL-25-75WPW
Power	25W
Input voltage	AC90-265V
Driver	隔离isolated内置 built-in
Frequency	50-60HZ
PF	>0.9
LED Quantity	科锐XPE 5050 3V/3x1W 9pcs
Light efficiency	≧95LM/W
Lumen	2200Lm-2400LM
Color Temperature	2800k-6500k
CRI	Ra＞80
Beam angle	9°，16°
Lifespan	≧25000Hrs
IP	IP66

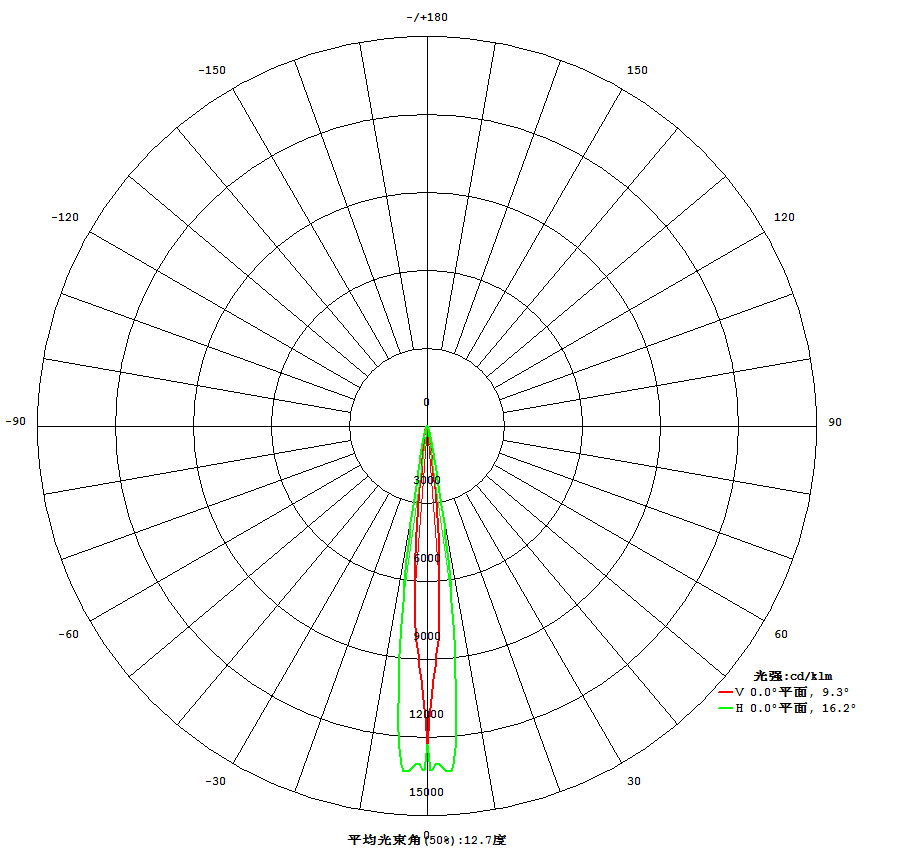

配光曲线

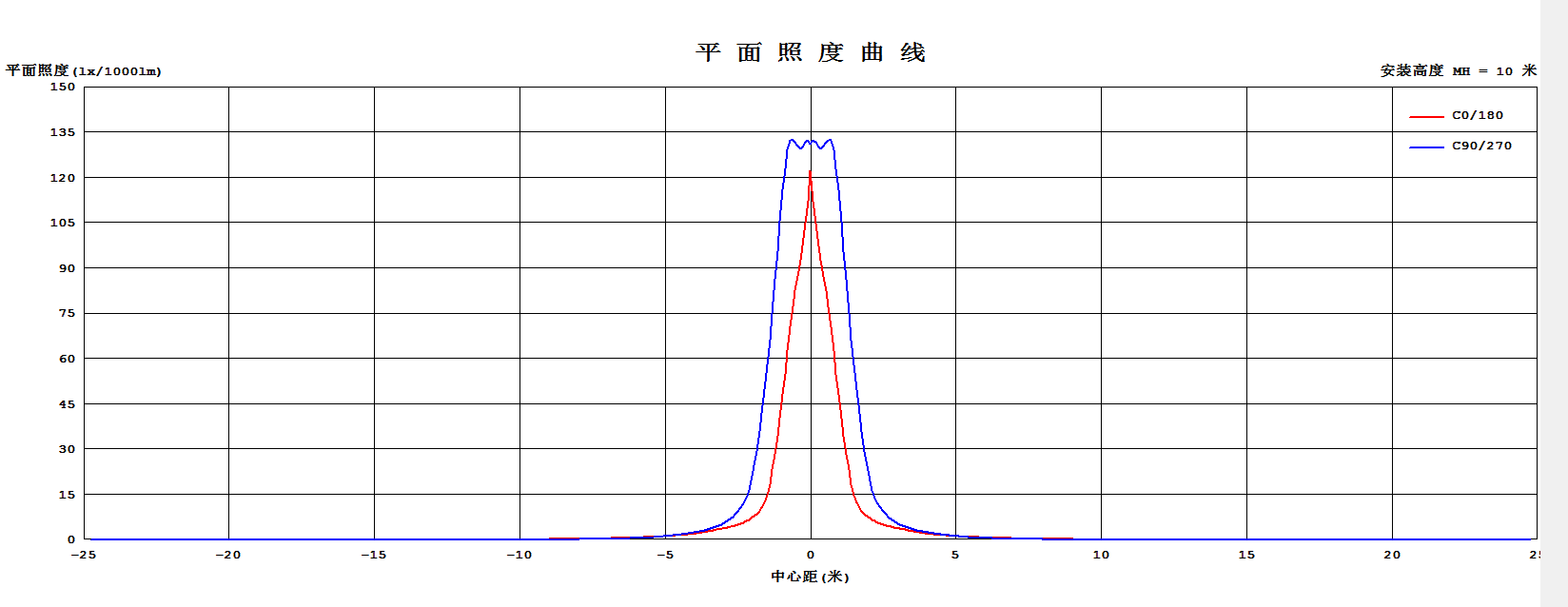

平均照度曲线

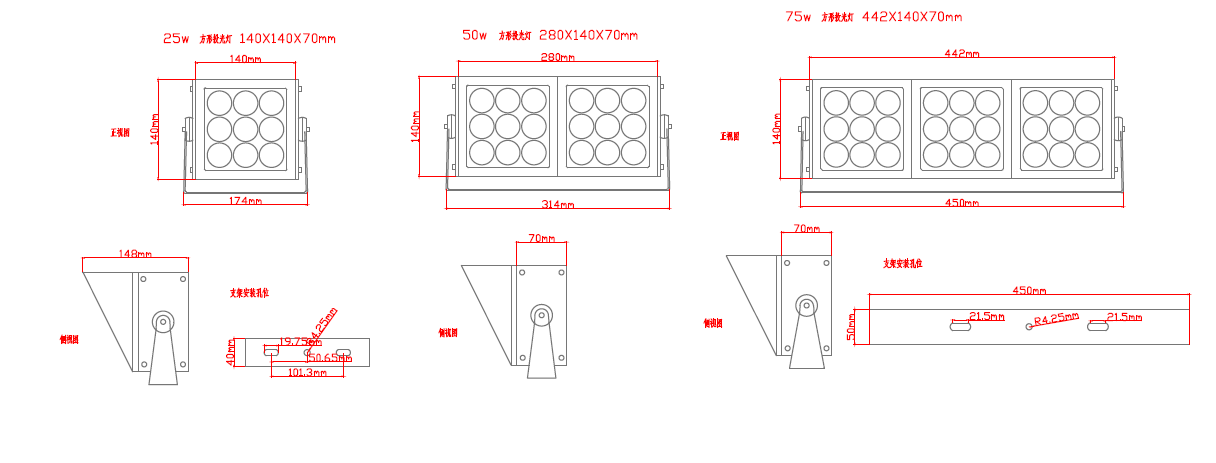

■ Outline Dimension外形尺寸

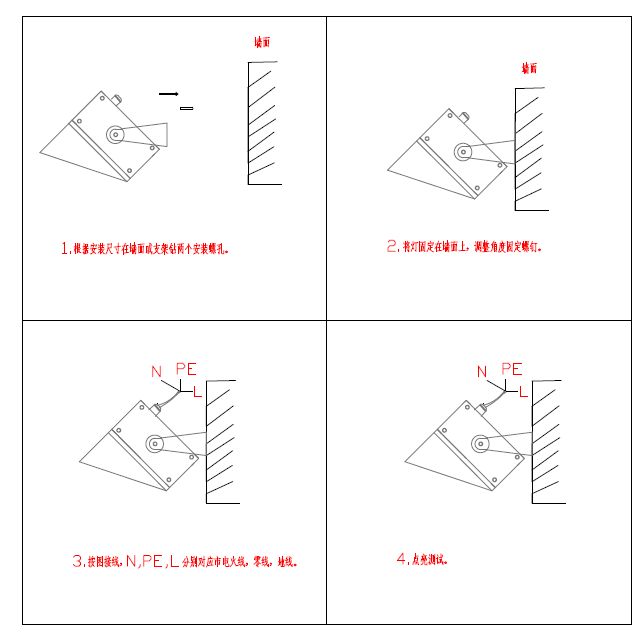

■ Product Installation Diagram 安装示意图

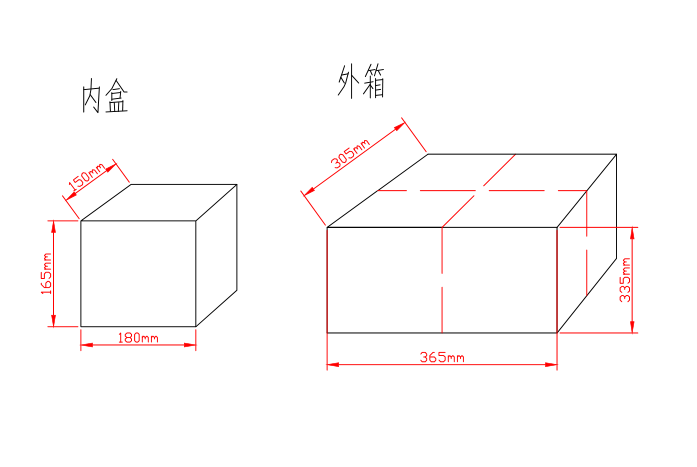

■ Packing 包装
