■ General Description描述

适合于室外照明，如一些公共场所，矿厂单位等等用，主要包括泛光灯的电气特性、光学特性、结构特性、产品认证、环保及可靠性要求。

       Suitable for outdoor lighting, as some public places, refinery units and so on, mainly including electrical properties, optical properties, structural characteristics, product certification, environmental protection and reliability requirements.

■  Applications产品应用
●  Production workshop, factory buildings, warehouses, highway toll station.
生产车间、厂房、仓库、公路收费站.
●  Gas stations, supermarket, exhibition hall, sports venues.
加油站、大型超市、展览馆、体育场馆.
●  Hall, conference room, shopping malls.
大厅、会议室、商场.


■  Technical Parameters技术参数
●  Lighting parameters灯具参数

Item	HXD-FDL-20WPW
Power	20W
Input voltage	AC90-265V
Driver	隔离isolated内置 built-in
Frequency	50-60HZ
PF	>0.9
LED Quantity	飞利浦3030 6V/1W  24pcs
Light efficiency	≧85LM/W
Lumen	1550Lm-1800LM
Color Temperature	2800k-6500k
CRI	Ra＞80
Beam angle	17°，20°
Lifespan	≧25000Hrs
IP	IP66

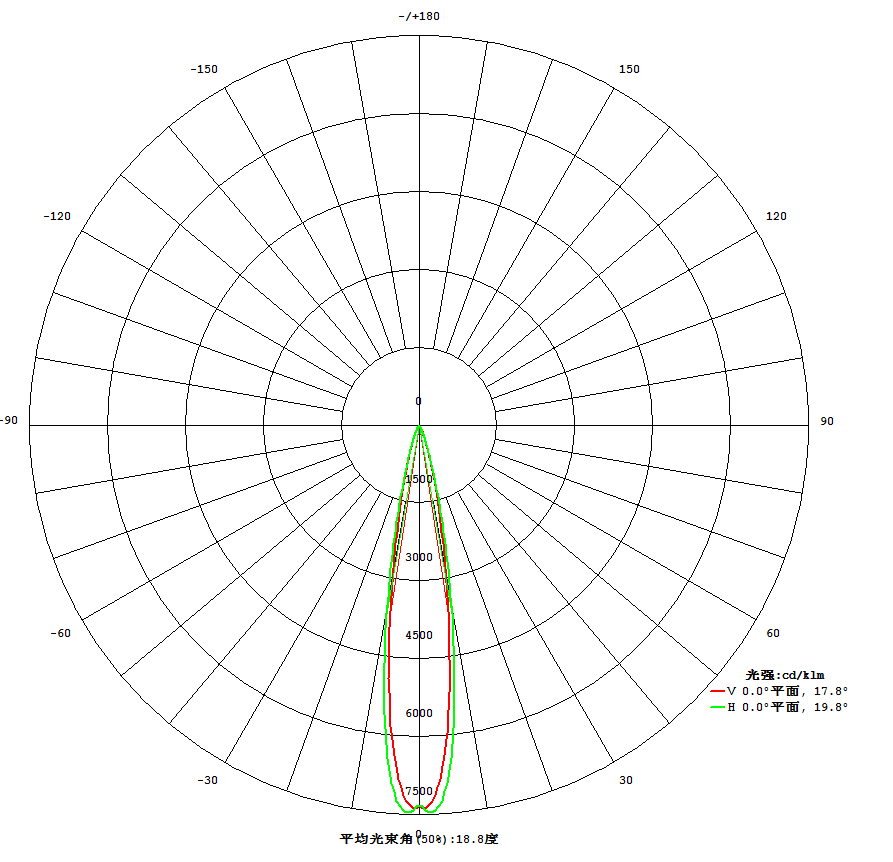

                                                                                                         配光曲线

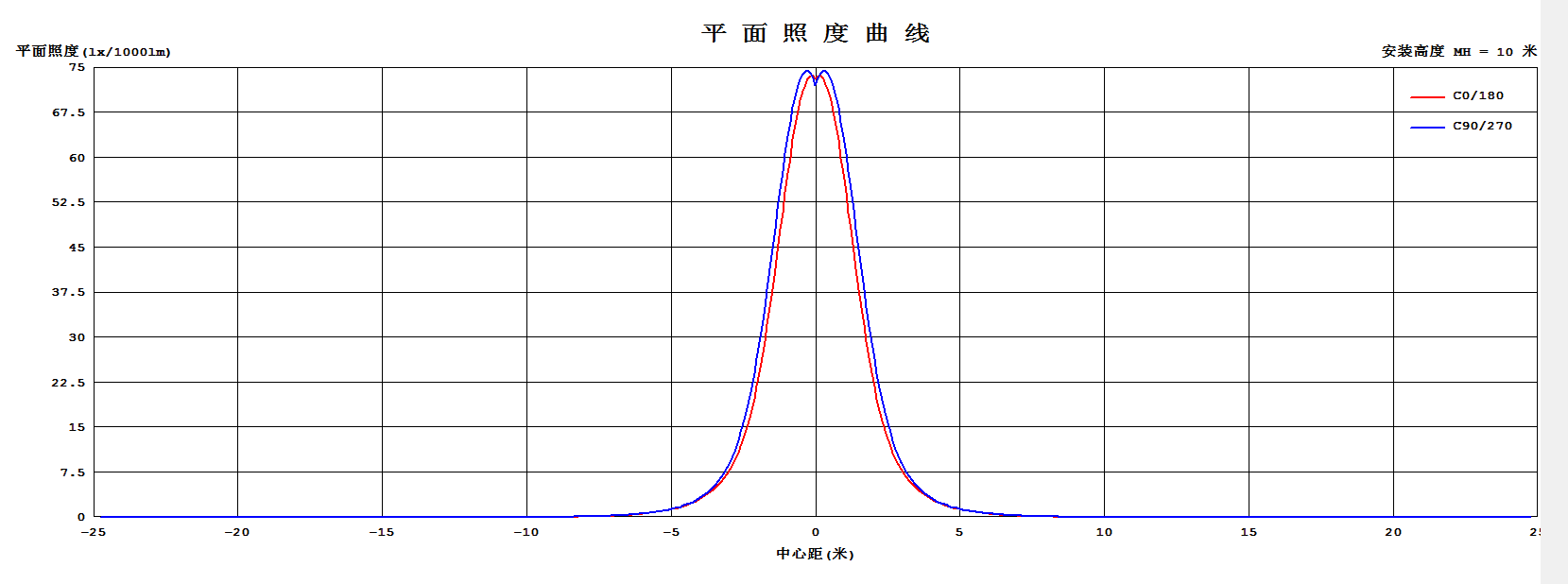

                                                                                                           平均照度曲线

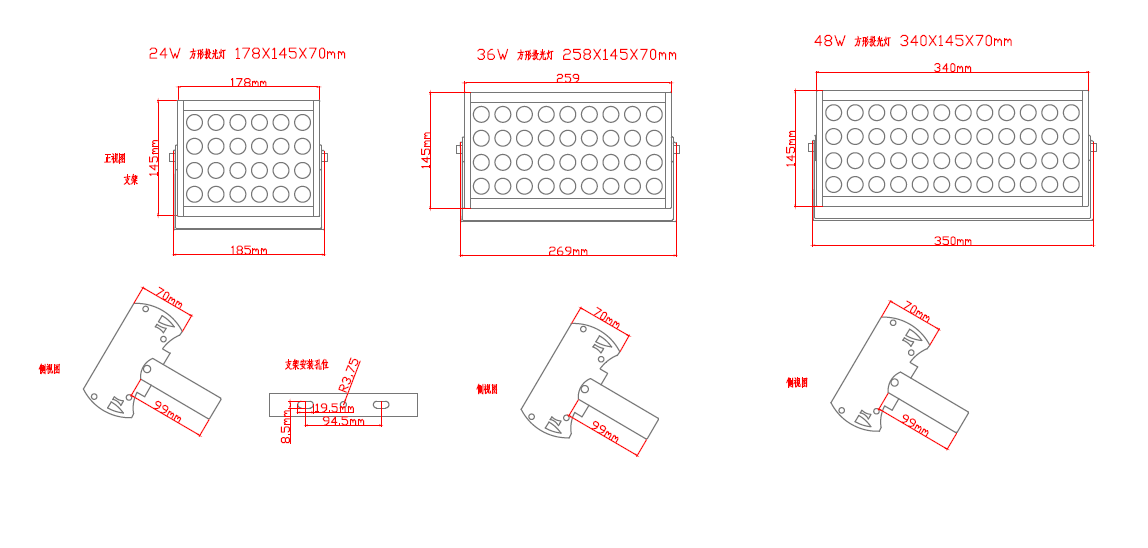

      ■ Outline Dimension外形尺寸

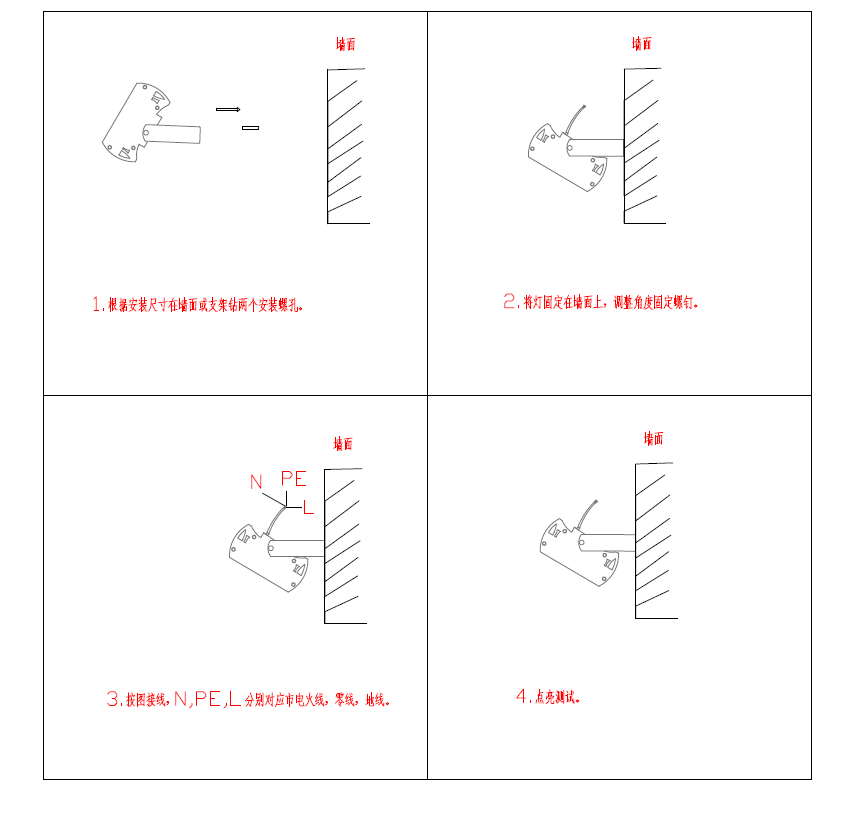

■ Product Installation Diagram 安装示意图

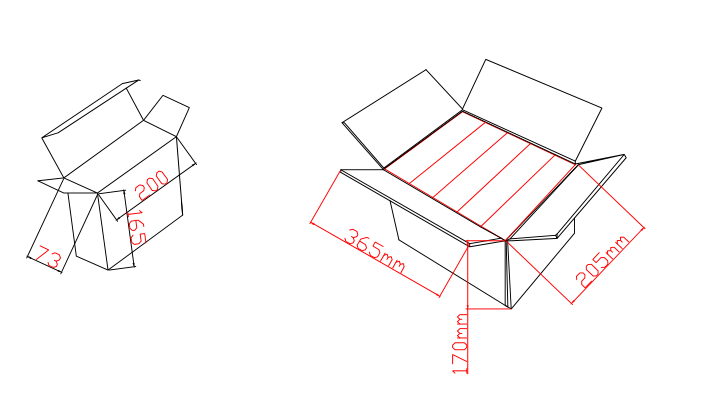

■ Packing  包装
